Setting up Message to Signal Conversions:

1. First follow the steps to Apply DBC's to your message files. After Applying DBC to message files Select the files you want to convert.

2. Add the message file to dataset using Add to Dataset icon.

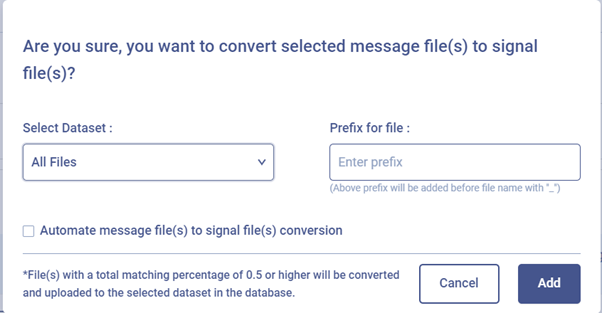

3. Following Dialogue box will appear:



4. Select a Dataset and add a Prefix for the file.

Recommended: Select automate message files option to automatically add any new files to the data set after conversion.

5. Click Add.

6. You can now view these files in the Data Analysis tab and perform analysis on it.
