Visualizing GPS Plots

To visualize a GPS plot from test data:

1. In the left pane, click Data Analysis icon.

2. From the Project List, select a project.

3. On the Data Analysis tab, click Add Analysis. Select GPS Group

4. Enter a name for the GPS Group.

5.Click on Select Parameter

6.Select Dataset >> Latitude And Longitude parameters will be automatically selected.

6. Click Save Changes.

8. Click Add Cycles to add multiple test cycles.

9. Click Add Files for each cycle and select the files that you want to add.

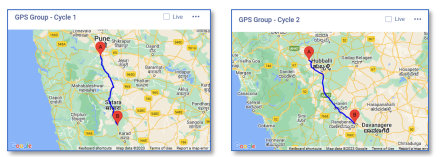

10. Click Apply. Similar to Analysis Group, in GPS Group as well, separate GPS Plots are generated for each cycle.
