Examples


Computations:


  1. The example below is a very simple use of computations. In this example the @max () and @min () function fetches the maximum and minimum value of the parameter ‘ENG_Temp_Out’ respectively.

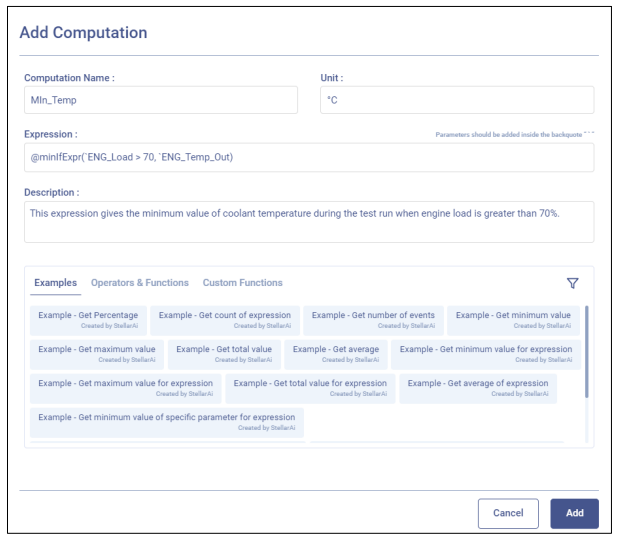

  2. In this example, the function @minIfExpr allows the user to find the minimum value of the parameter at a specified condition.

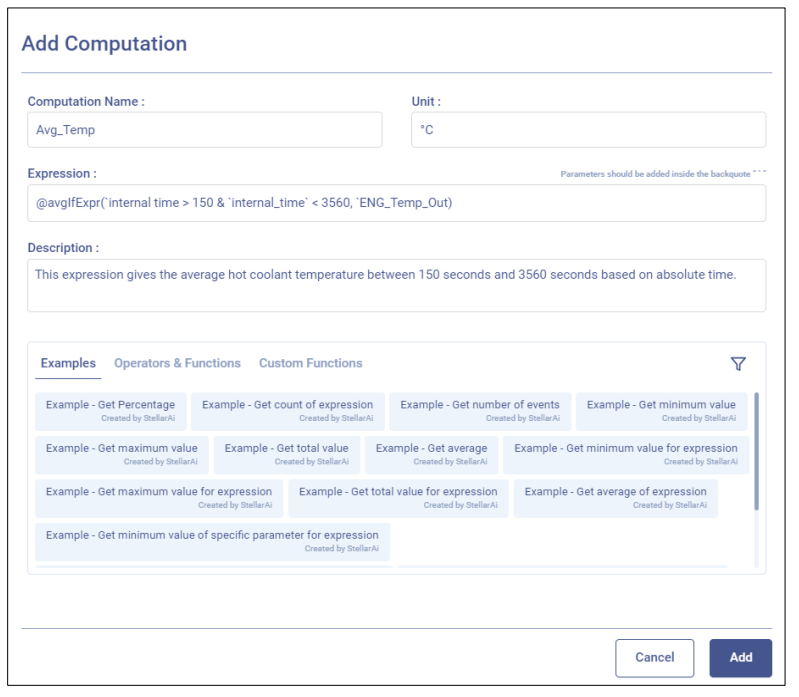

  1. StellarAi also gives us the ability to apply a function on a part of column filtered on time. In the example below @avgIfExpr () gives the average value of ‘ENG_Temp_Out’ between the time frame specified in the condition. Time can be identified after plotting the graph.

Note: All new Computed Parameters & Computed Information Tiles are saved by StellarAi for re-use by other users of the same Project.
